Vandy Vape Pulse BF Squonk Box Mod

The Vandy Vape Pulse BF Squonk Mod – who would have thought that a basic mechanical squonk mod could look this cool! With barely more than a 20700 battery (not supplied) a 510 squonk connector and a Fire button, this minimal mod delivers maximum power to your squonk atomizer. Tucked away in the Pulse mod’s interior is an 8ml capacity, squeezable e juice bottle. The Pulse box mod will take squonk tanks and RDA’s up to 25mm in diameter without overhang.

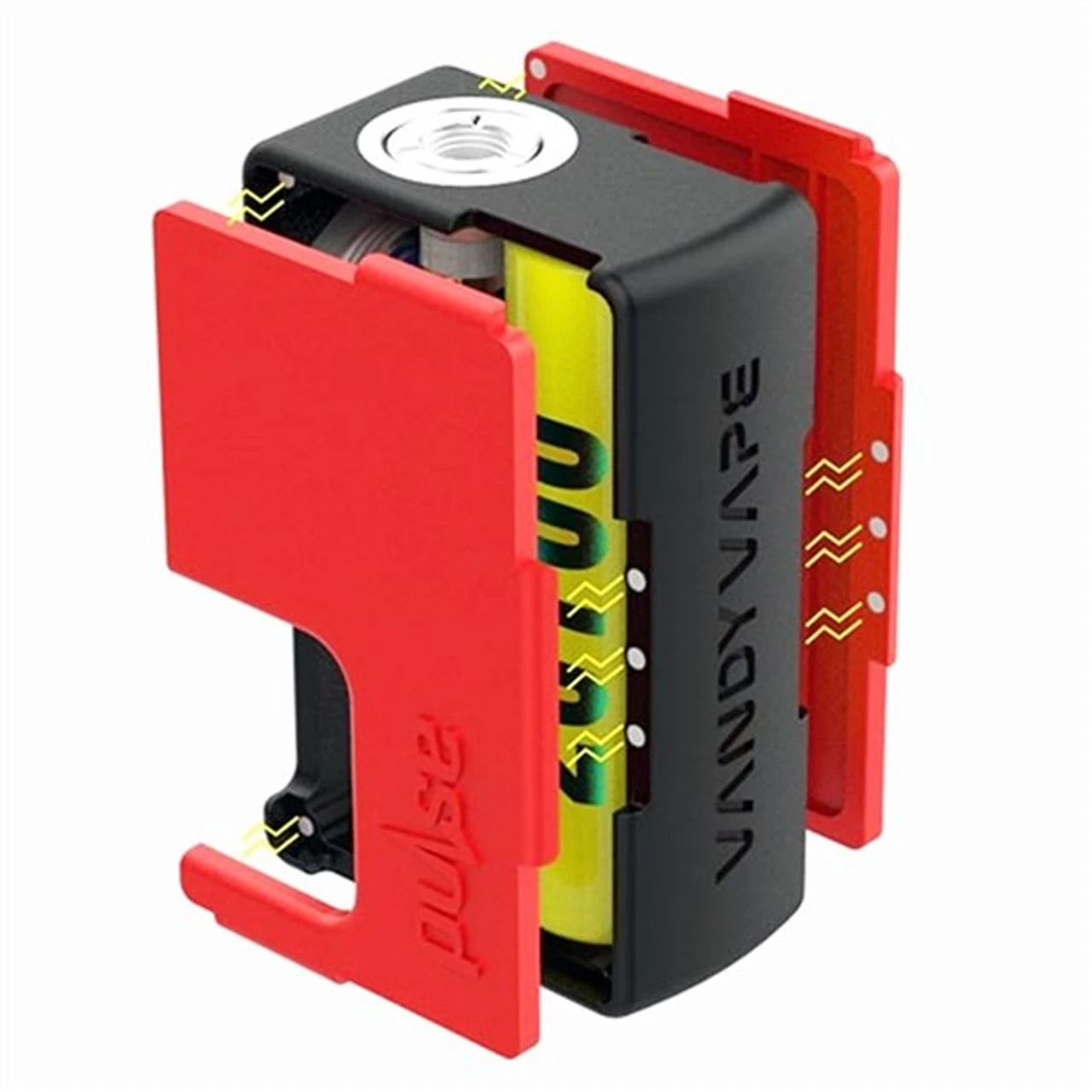

This incredible little bottom feed (BF) mechanical mod was designed with input from YouTube squonk specialist, Tony B (The Vapor Trail Channel). The concept is simple and effective. The casing consists of brightly coloured nylon panels magnetically attached to a central, temperature resistant ABS chassis. As well as being incredibly eye-catching, the panels are fully washable. They also offer easy access to the battery and squonk bottle.

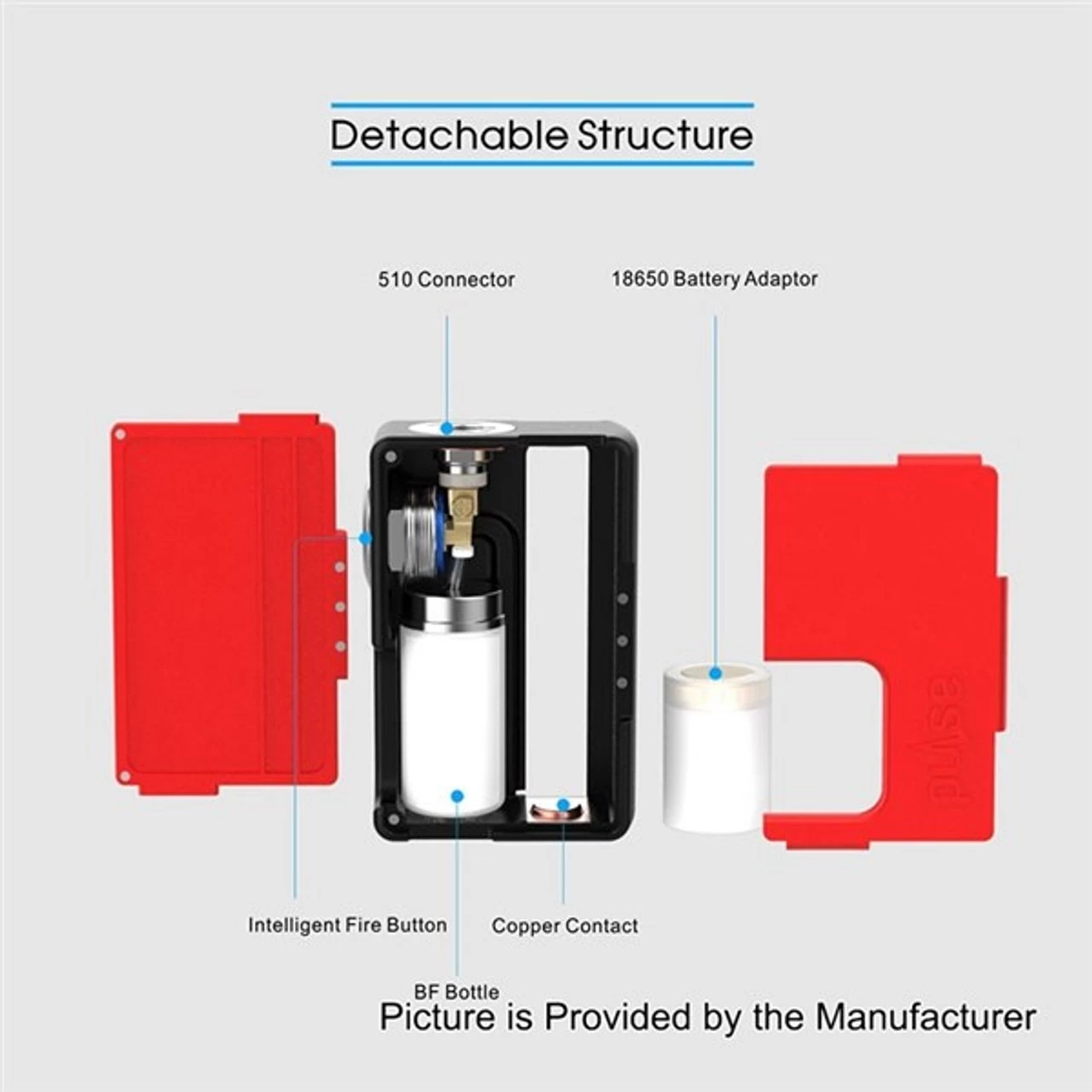

The electrical circuitry is basically a few short lengths of solid copper, connecting the Fire button and battery. The 510 connector features a spring-loaded squonk pin with a central e juice channel. Squeezing the mod’s 8ml capacity silicone squonk bottle forces e juice up through the pin into a connected atomizer. Please note that the mod doesn’t come with an atomizer tank. We have an excellent range of compatible tanks and RDA’s in stock.

The Pulse BF squonk mod is designed for use with a high-output 20700 battery. You’ll also find a simple battery adapter in the box which allows you to use a standard 18650 vaping battery. Naturally, this skeletal box mod has no on-board charging. Check-out our superb range of universal battery chargers if you don’t have one at home.

With its open circuitry, the Vandy Vape Pulse BF squonk mod has an authentic ‘DIY’ feel. Being totally unregulated, this mod comes with the most basic safety features. By removing the front panel, you gain access to a simple ‘blade’ style, locking power safety switch. To prevent accidentally firing the mod, Vandy Vape recommend that you turn the switch to the safe ‘Lock’ position before putting the Pulse mod in your bag or pocket.

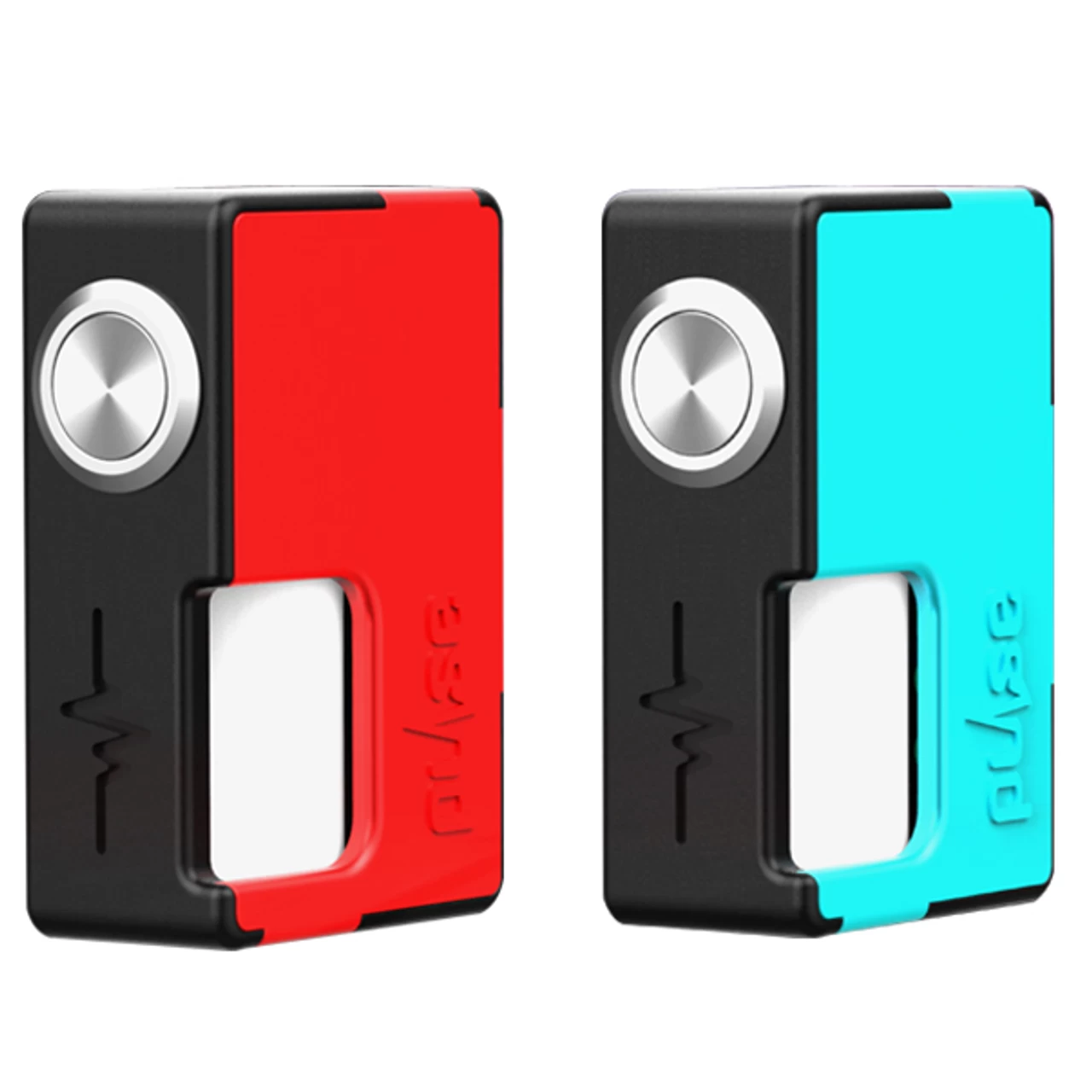

Choose from White, Purple, Blue, Red, Cyan, Grey or Black panels when you order your Vandy Vape Pulse BF squonk mod.

The Pulse BF squonk mod doesn’t come with a squonk tank, battery or e liquid. We have a great selection of squonk atomizers, batteries and chargers in our Accessories pages. We also stock a phenomenal range of E liquids.

Contents:
1 x Vandy Vape Pulse BF Squonk Mod
1 x 8ml Silicone Squonk Bottle
1 x 18650 Battery Adapter
1 x Instruction Leaflet
 
VandyVape Pulse BF Squonk Mod Features:
Size: 77mm x 50mm x 27mm
Connector: 510 screw with sprung squonk pin
Squonk bottle capacity: 8ml
Light, stylish mechanical squonk mod with safety switch
Comes with a 6 month manufacturer’s warranty
Features washable nylon panels front & rear
Requires a high-current, 20700 (or 18650) battery
Comes with an 18650 battery adapter
Simple, efficient design by VandyVape & Tony B (Vapor Trail Channel)
Uses solid copper circuitry
No soldered contacts or wires
Comes with a locking power safety switch
Easy front or rear access to battery & squonk bottle
Responsive Fire button
Squonk bottle made from food grade silicone
Direct output – full battery power to tank
Recommended for experienced vapers
Delivers a superb vape
Cool, DIY look
Panels can be bought separately in different colours

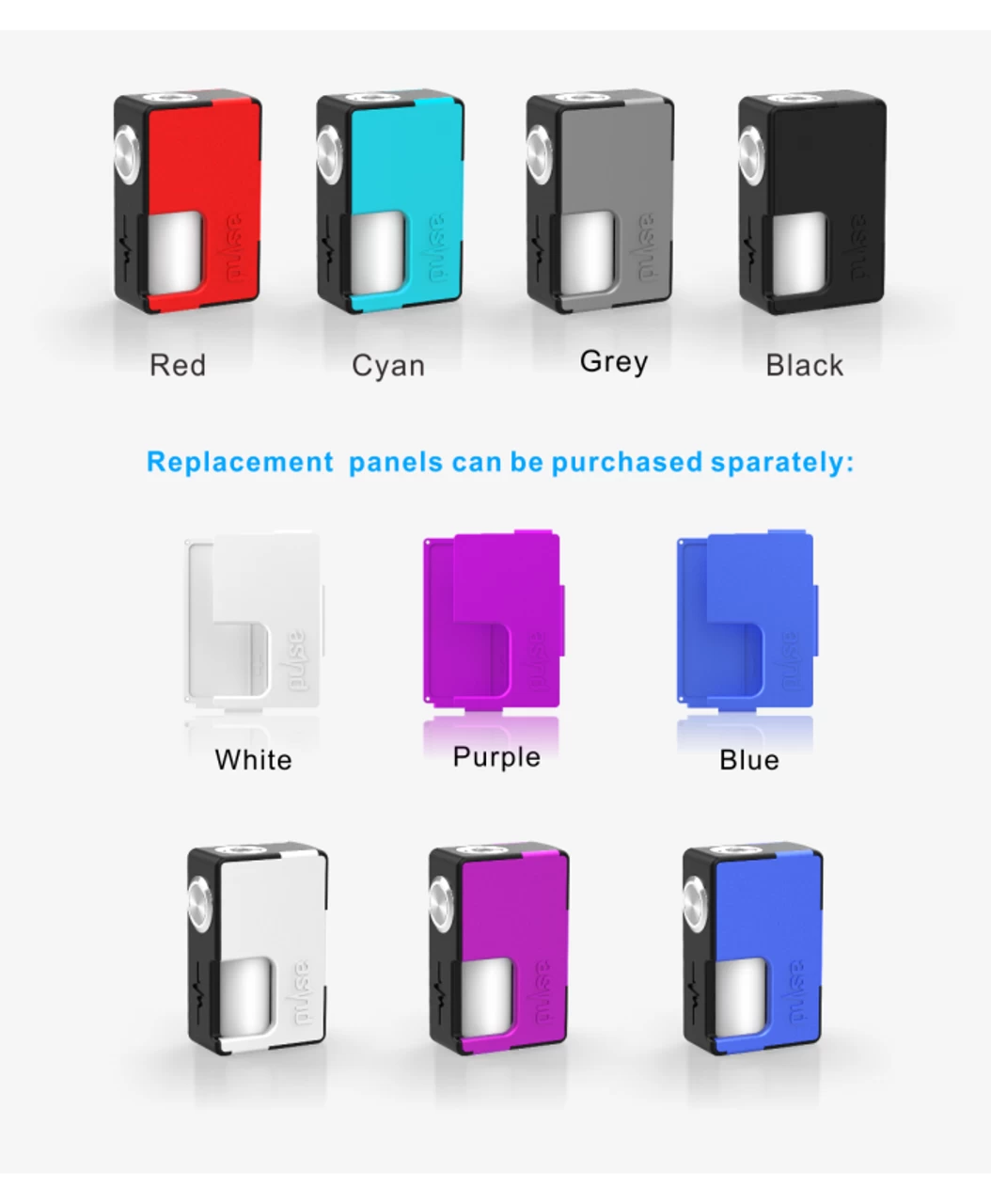

7 panel colours available: Grey, Purple, Blue, Red, Cyan, White or Black

Replacement Parts
Replacement frosted panels can be purchased for the Vandyvape Pulse Mod by clicking this link

Tank Compatibility:
The VandyVape Pulse BF Sqonk Mod is compatible with most 510 atomizers. It also works exceptionally well with squonk RDA’s. The mod comes with an 8ml capacity bottom feed squonk bottle. The mod will accommodate 25mm diameter atomizers without overhang. This is an unregulated mechanical mod that is designed for use by experienced vapers. Always lock the safety switch before carrying the Pulse mod in a bag or pocket.

Warranty:
For warranty information see our terms & conditions page here.
